Sales Tel 400-658-0306

Miracle Series CMM

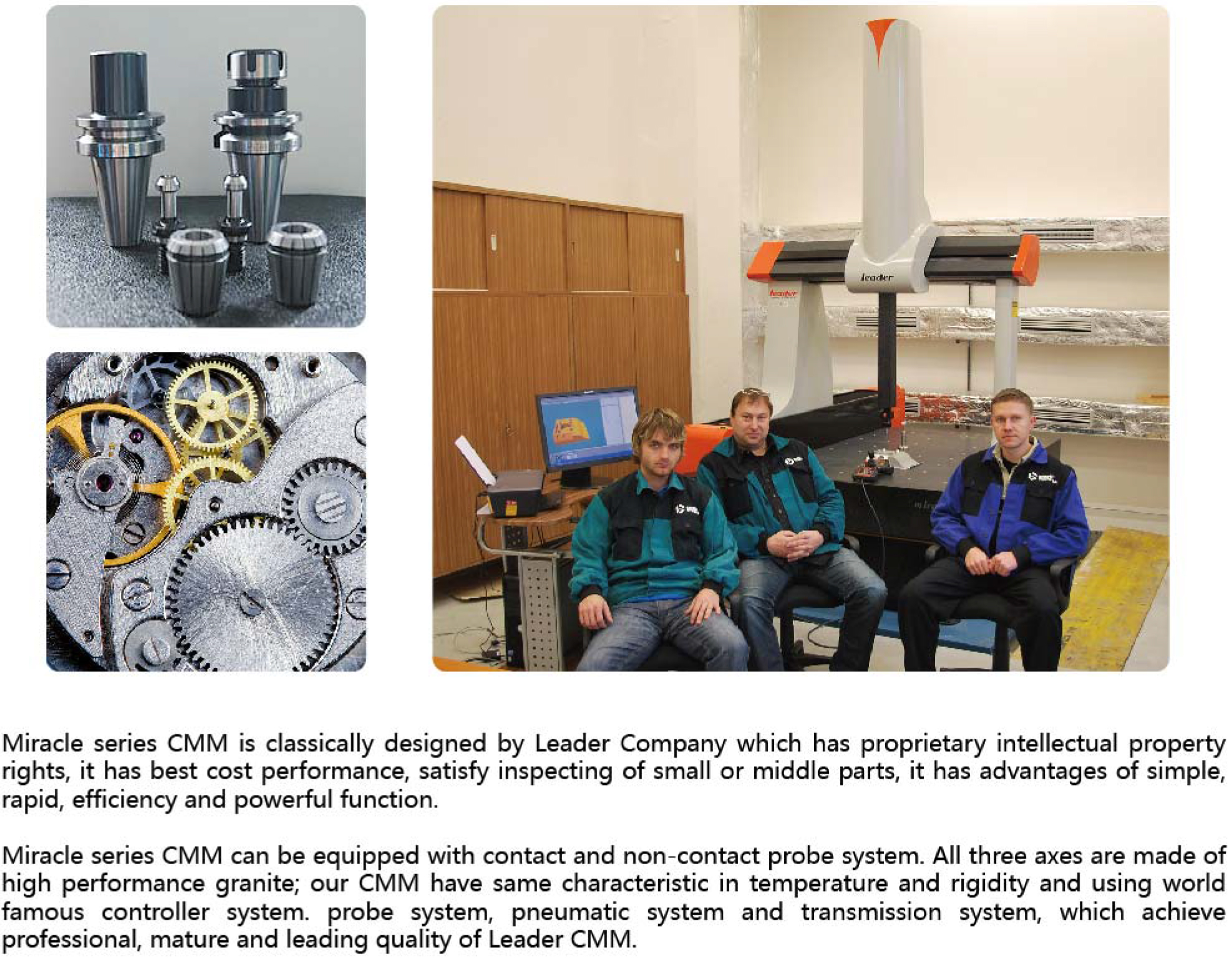

Miracle series CMM is classically designed by Leader Company which has proprietary intellectual property rights, it has best cost performance, satisfy inspecting of small or middle parts, it has advantages of simple, rapid, efficiency and powerful function.

Miracle series CMM can be equipped with contact and non-contact probe system. All three axes are made of high performance granite; our CMM have same characteristic in temperature and rigidity and using world famous controller system. probe system, pneumatic system and transmission system, which achieve professional, mature and leading quality of Leader CMM.


MODELSTROKESMEASURING ACCURACYOVERALL SIZEWORK ENVELOPEWEIGHTPART WEIGHT



ISO10360-2:2009/GB/T16857.2-2006
XYZSLxLyLzWxWyWz
mmmmmmMPEE(μm)MPEP(μm)mmmmmmmmmmmmkgkg
NC564500600400from2.1+3.3L/1000from2.21350147523006007005001140500
NC685600800500from2.3+3.3L/1000from2.31450175025007009006001400700
NC61056001000500from2.3+3.3L/1000from2.3145019502500700110060015301000
NC787700800700from2.4+3.3L/1000from2.414501850300080090080017801000
NC81078001000700from2.5+3.3L/1000from2.5155020503000900110080021001000
NC81578001500700from2.7+3.3L/1000from2.7155025503000900160080025801000
NC1012810001200800from2.9+3.3L/1000from2.91750255032001100130090027501500
NC1015810001500800from2.9+3.3L/1000from2.91750280032001100160090031001800
NC1020810002000800from2.9+3.3L/1000from2.91750330032001100210090034501800
NC121510120015001000from3.0+3.3L/1000from3.219502800345013001600110039001800
NC122010120020001000from3.0+3.3L/1000from3.219503300345013002100110050602000
NC12XX101200XX1000from3.0+3.3L/1000from3.21950XX34501300XX1100xxxx
NC152010150020001000from3.5+3.3L/1000from3.822503300345016002100110058002000
NC15XX101500XX1000from3.5+3.3L/1000from3.82250XX34501600XX1100xxxx
  • Power Voltage:220V
  • Temperature Range:18-22℃
  • Air Pressure:0.5-1.0Mpa
  • Hourly Temperature Cycle:1℃/h
  • Filter Accuracy:0.3μm
  • Thermal Gradient:1℃/m
  • Air Supply:0.12-0.45m3/min
  • Relative Humidity:55%-65%
